Sol-Ark 5.0kW Inverter

Description

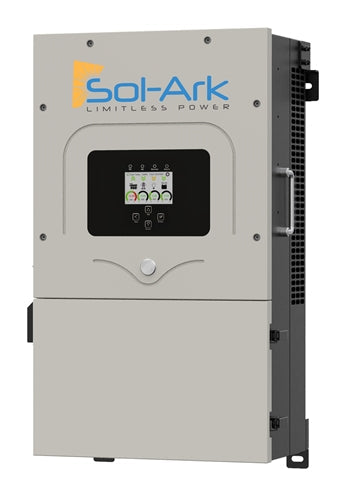

Looking for an all-in-one inverter system? The Sol-Ark Battery Based Inverter combines your battery components in an easy to install system. The enclosure includes an inverter, charge controller and remote monitoring. While it provides battery components, it can be used in Grid Tie, Grid Hybrid and Off Grid systems. The inverter easily manages power going to and from the solar, batteries, utility power, loads, and a generator.

Features

• Simple to install with touchscreen interface
• Grid Tied Mode
• Meter Zero Mode: Zero your electric bill without a smart meter
• Time of Use: Use solar and batteries to minimize grid power usage
• Programmable Smart Load Mode
• DC and AC Coupling
• Works with a wide range of battery chemistries – Lead acid to Lithium

Specifications

• AC Voltage: 120/240V split phase
• AC Frequency: 60/50 Hz
• Max AC Coupled input(Micro/String Inverters): 9,600 Watt/9,600 Watt
• MPPT Voltage Range: 150-425V
• Max DC Current: 10 Amp (per mppt)
• Inverter Efficiency: 96.0%
• Weight: 78. lbs
• Dimensions (H x W x D): 30.0″ x 18.30″ x 10.00″
